Universal
laser Bridge
device
for embroidery
machineS
2nd example
|
|

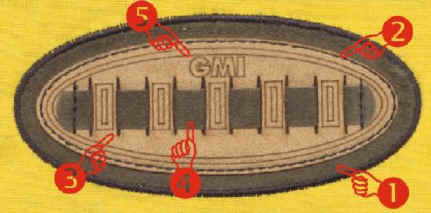

The embroidery on the left has 2350 stitches
and one single colour. GMI
Laser II takes 1.3
secs per head to cut the first applique (fig. 1), while the cut, the
engraving and the GMI
letters on the lighter coloured leather are done in 6.3 seconds per head
(fig.
2,3,5). When the laser has engraved n. 3, the operator lays down a piece of leather (4) between the cuts of applique 2. The machine then completes the embroidery by fixing the applique 4. The shift of the laser carriage from head to head takes about 12 seconds. In order to cut the whole applique of lighter leather we have to calculate 6.3" per head plus 12", for a total of 37.2 seconds. |
|
| . |
